Crane Guide Rail Steel Rail

Crane Guide Rail Steel Rail

    Payment Type: L/C,T/T,Money Gram,Western Union
    Terms of Trade: FOB,CIF
    Min. Order: 10 Ton
    Delivery Time: 15 Days
    Packaging:  in Bundle
    Productivity:  3000t/MONTH
    Brand: OEM
    Transportation: Ocean,Land
    Place of Origin: CHINA
    Supply Ability: 2000T/MONTH
    Certificate: ISO9001: 2000, CE, GOST SGS
    HS Code: 73269010
    Port: QINGDAO

Basic Info

Model No.: CR001-LT

Product Description

Crane Guide Rail Steel Rail

Product Description

Introduction of Railway Steel Rail 6kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, Light Rail, Heavy Rail, Crane Rail

1. Light rail: Size: 6kg, 9kg, 12kg, 15kg, 22kg, 30kg, 8kg, 18kg, 24kg material: 55q/Q235B standard: GB11264-89 standard, yb222-63 standardlength: 6-12m
2. Heavy rail: Size: 38kg, 43kg, 50kgmaterial: 50mn/u71mn standard: GB2585-2007length: 12.5-25m
3. Crane rail: Size: Qu70, qu80, qu100, qu120 material: U71mn standard: Yb/t5055-93 standardlength: 12m
Parameters of Railway Steel Rail 6kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, Light Rail, Heavy Rail, Crane Rail

Crane Rail Lt

STANDARD LIGHT RAIL
SIZE DIMENSION (MM) WEIGHT
(KG/M)
MATERIAL LENGTH
(M)
HEAD
A(MM)
HEIGHT
B(MM)
BASE
C(MM)
WEB
D(MM)
GB 6KG 25.4 50.8 50.8 4.76 5.98 Q235B 6-12
GB 9KG 32.1 63.5 63.5 5.9 8.94 Q235B 6-12
GB 12KG 38.1 69.85 69.85 7.54 12.2 Q235B/55Q 6-12
GB 15KG 42.86 79.37 79.37 8.33 15.2 Q235B/55Q 6-12
GB 22KG 50.3 93.66 93.66 10.72 22.3 Q235B/55Q 6-12
GB 30KG 60.33 107.95 107.95 12.3 30.1 Q235B/55Q 6-12
GB2585-2007 STANDARD HEAVY RAIL
SIZE DIMENSION (MM) WEIGHT
(KG/M)
MATERIAL LENGTH
(M)
HEAD
A (MM)
HEIGHT
B (MM)
BASE
C (MM)
WEB
D (MM)
GB 38KG 68 134 114 13 38.733 50Mn/
U71Mn
12.5-25
GB 43KG 70 140 114 14.5 44.653 50Mn/
U71Mn
12.5-25
GB 50KG 70 152 132 15.5 51.514 50Mn/
U71Mn
12.5-25
High web crane rail-LT
STANDARD CRANE RAIL
SIZE DIMENSION (MM) WEIGHT
(KG/M)
MATERIAL LENGTH
(M)
HEAD
A(MM)
HEIGHT
B(MM)
BASE
C(MM)
WEB
D(MM)
QU 70 70 120 120 28 52.8 U71Mn 12
QU 80 80 130 130 32 63.69 U71Mn 12
QU 100 100 150 150 38 88.96 U71Mn 12
QU 120 120 170 170 44 118.1 U71Mn 12

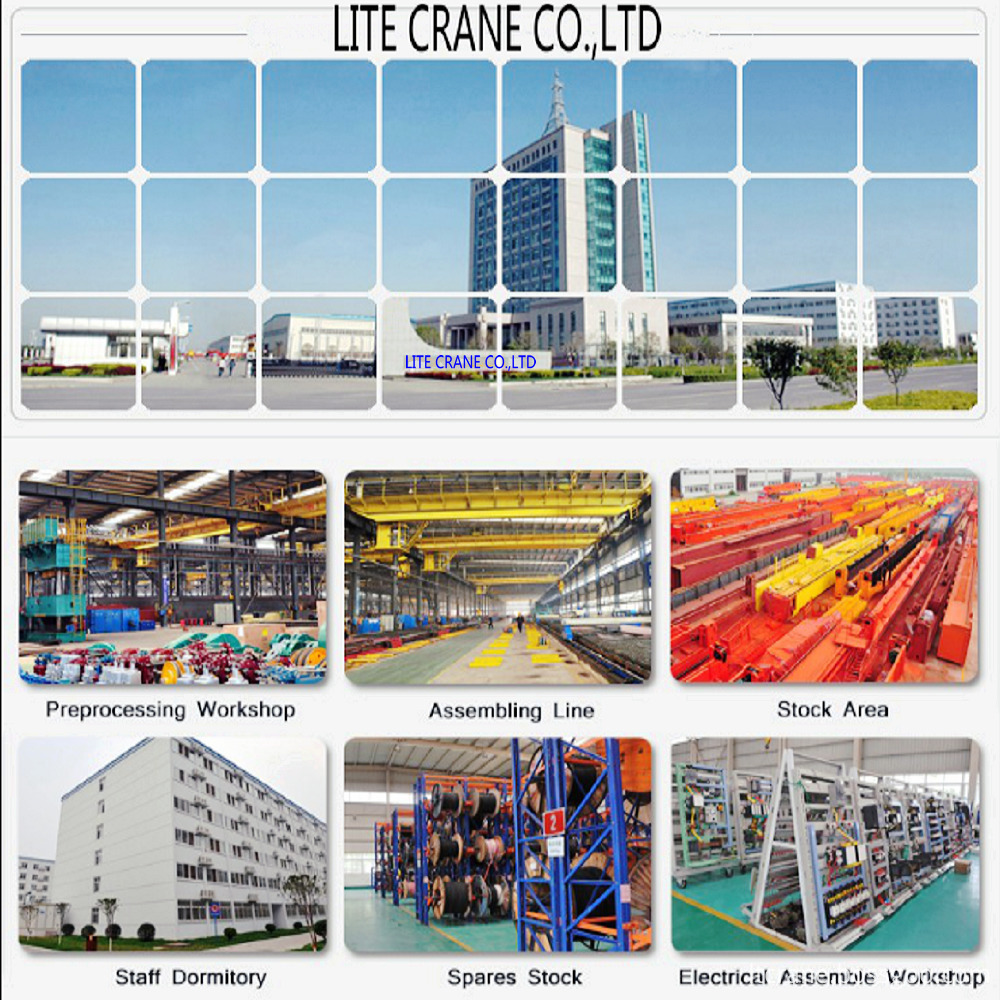

Lite Crane Factory Show


Catalogue Of Litecompany
1. Our History:
LITE Crane Co., LTD has focused on top quality crane parts for over 14 years in China. We started as a
small operation, but now have become one of the leading suppliers in the crane industry in China. Today, LITE Crane Co., LTD has been one of the top producers of quality crane and crane parts, such as: electric hoist, single, double girder bridge, gantry, grab, casting, explosion-proof crane series and
accessories.

2. Our Factory:
LITE Crane Co., LTD is located in Xinxiang, Henan Province China. The company covers an area of 680 thousand square meters and owns more than 2700 employees. The annual sales of LITE Crane Co., LTD is 1.6
billion USD, there are more than 600 sales agencies at home and abroad and more than 180 middle& senior
engineering and technical personnel who are in charge of design and development of all products and also
own the development center of their new technology and products.

3.Our Product:
Our Products includes the following:
1, Crane accessories
2, Electric hoist
3, Single - beam cranes
4, Double - beam cranes
5, Bridge crane
6, Gantry crane
7.Lifting equipment and accessories
We supply crane products all over the globe to a wide range of companies worldwide.

4.Product Application:
The products are widely used in the following industry, such as power plants, nuclear power, water
conservancy, tunnels, bridges, petrochemical, metallurgy, construction, open-air warehouse, wharf,
workshop ...

5.Our Certificate:
Our company is a member of China Crane Association and vice chairman company of China Heavy Machinery
Association. It owns the production licenses of electric hoist, single & double-girder crane, the safety
of the approval certificate of manufacturing, installation and maintenance, the safety approval
certificate of the manufacturing of 320T bridge crane, portal crane and 280Tcasting crane.
The company has passed the quality system certification of GB/T19001 -2008/IS09001:2008, the
environmental management system certification of GB/T24001-2004/ISO14001:2004 and the occupational
health and safety management system certification GB/T28001-2001.

6.Production Equipment:
There are 1600 units of all kinds of processing equipment which can independently accomplish all the
processes such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting,
bending, welding, testing and heat treatment.

7.Production Market:
Our products are sold to more than 30 provinces, municipalities and autonomous regions in China, and
also exported to Australia, Vietnam, India, Thailand and some Southeast Asian countries. The annual
sales of double-girder and portal cranes is more than 3600 units, more than 23000 units single-girder
cranes, about 23000 units single-girder & double-girder electric hoist and accessories. The production
and sales of the single-girder cranes has lead the nation for seven consecutive years and the per capita
output and economic benefits are among the best in the same industry.

8.Our service:
Besides our existing molded products, LITECrane Co., LTD also can produce products according to the
drawings or samples from our customers. We control the product quality critically for every step during
the manufacturing from custom.

Shandong Lite Electrical Co.,Ltd



Vice President of China Heavy Machinery Association, China's green environmental protection and energy conservation enterprise, China's first single beam crane enterprise, more than 2,700 employees. In 2017, the company has annual sales of 2.8 billion yuan, 106 world sales agencies, more than 280 middle and senior engineers, world-class high-end material handling equipment for design and development, and 110 new technologies and product development centers with innovative technologies.
Constant temperature processing workshopRobot welding process
Metallurgical craneAs a high-tech enterprise, LITE continues to innovate its technology, world-class product technology, using environmental aerospace, power plants, railways, terminals, mines, factories.Production equipment capacity: the company produces world-class intelligent robot welding equipment, intelligent machining center manufacturing, MG gantry crane 5t-280t, double girder bridge crane 5t-680t, shipbuilding crane 5t-2800t, CD electric hoist 0.25t-120t It is one of the top 50 enterprises in China.Sincerely hope to cooperate with you and come.

Robot welding1
D

For your service: high quality and low price products, only need to provide workshop drawings, marked tonnage size, lifting height, span, voltage, use environment and process, our company will design according to your needs, precision manufacturing for you Cooperative services, Recruitment agents around the world. Technical exchanges import and export cooperation, a lifelong friendship, welcome you to visit China.
